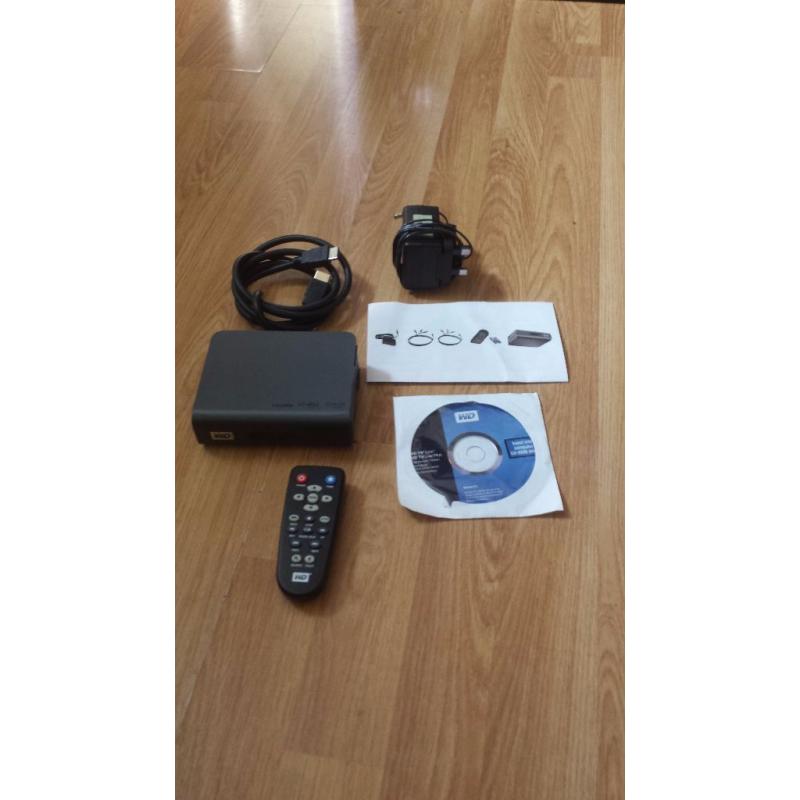

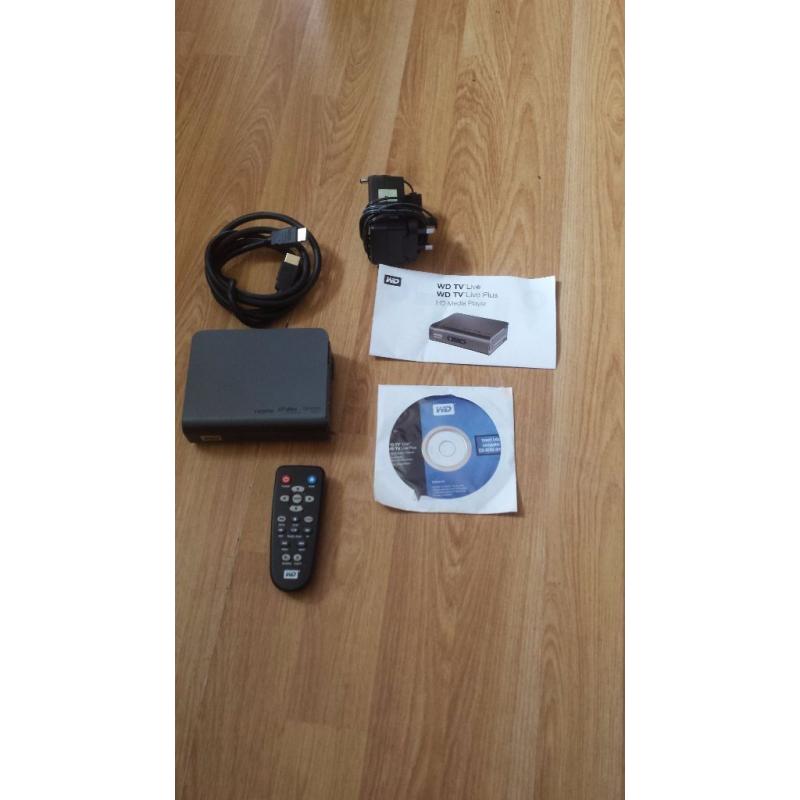

Description
EXCELLENT CNDITION AND FULLY WORKING
Features and Functions
Features
Audio/Video Interface
„ HDMI 1.3 interface for digital audio and high-definition video „ Component video interface (YPbPr, green/blue/red) for analog video connection „ Composite interface (RCA, yellow/white/red) for analog AV connection „ S/PDIF (optical) audio for high-fidelity digital audio „ Auto source function enables the HD media player to detect and switch to a new
interface connection. For example, the media player automatically switches to
HD mode when it is connected through an HDMI cable. „ Video output resolution includes 480i, 576i, 480p, 576p, 720i, 720p, 1080i,
1080p „ Stereo or multi-channel digital surround audio output (digital surround sound is
only available when using the S/PDIF interface). „ Wired or wireless Internet connection for access to online media content.
File Type Support
For a detailed list of supported video, audio, and photo file types, refer to “Supported
Formats” on page 153.
Plug-n-Play USB 2.0 Support*
„ USB storage device with a USB connector „ Portable media players with USB connector „ Digital cameras/camcorders with USB connector „ Wired or wireless keyboards with USB connector
*For a list of tested, compatible USB devices, see Article #3805 in our knowledge base at
USB Storage File System Support
„ NTFS „ FAT/FAT32 „ HFS+
Connections
Item Component Description
1 USB port 1 Supports connection of removable storage devices, portable
media players, digital cameras with USB connectors, and
USB wireless adapters.
2 Reset switch Press for one second to reset to factory defaults (see “Reset
to Factory Defaults” on page 140). Press and hold 10 seconds
to toggle between NTSC and PAL. Use a fine-tipped stylus or
the unfolded end of a paperclip to press the reset switch.
3 Power jack Connects the power cable
4 USB port 2 The same function as USB port 1
5 HDMI port Connects to your TV’s HDMI port (HDMI cable sold separately)
6 S/PDIF (optical)
audio port
Connects to your AV receiver (S/PDIF cable sold separately)
7 Ethernet port Supports LAN connection for wired Internet access.
8 Composite jack Connect to your TV’s analog video and audio jacks
9 Component jack Connect to your TV’s component (YPbPr) terminals.
